ArtDeck®
ArtDeck® is a panel based on a pressed grating with coloured EPDM granulate infill integrated into the meshes.

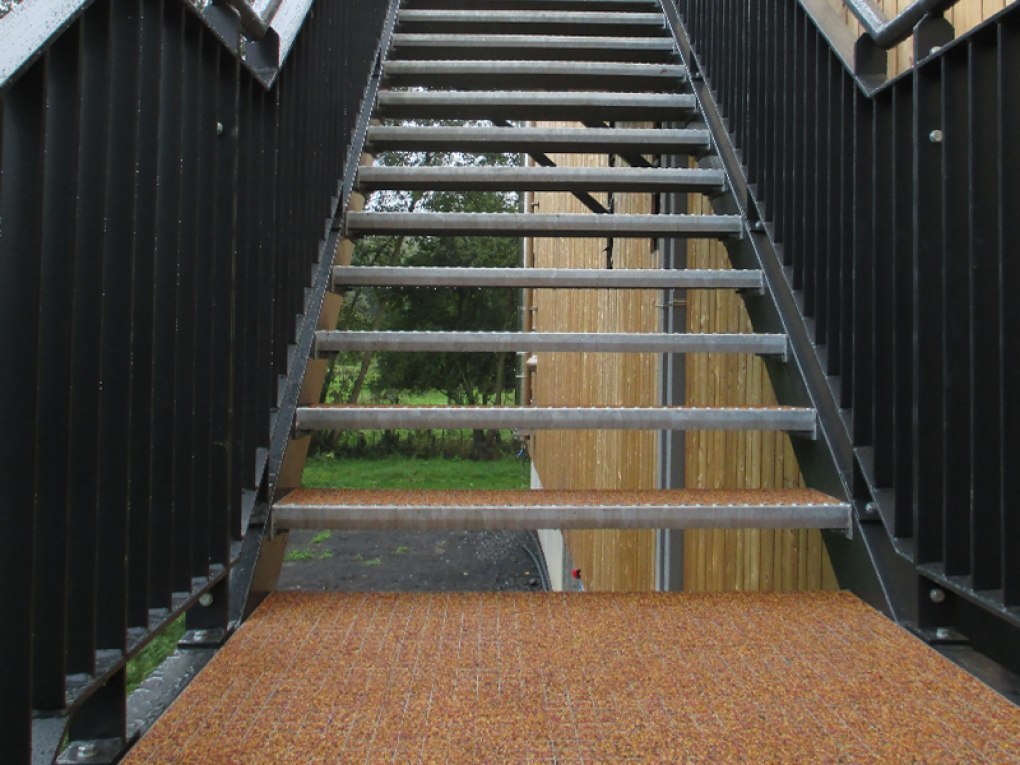

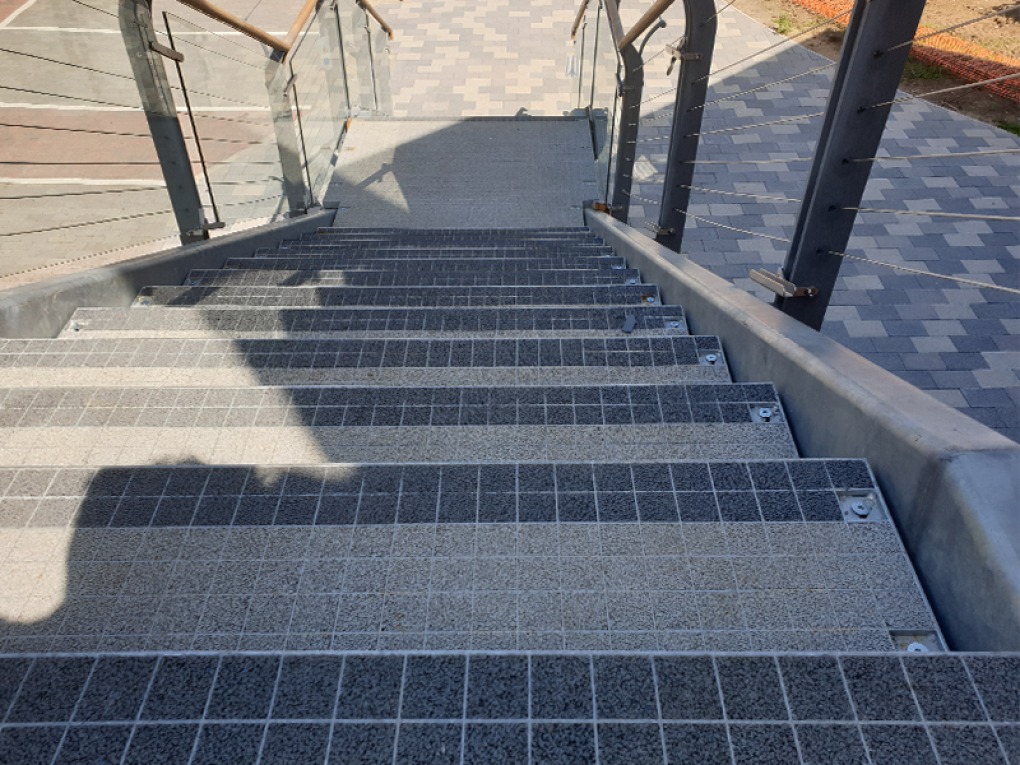

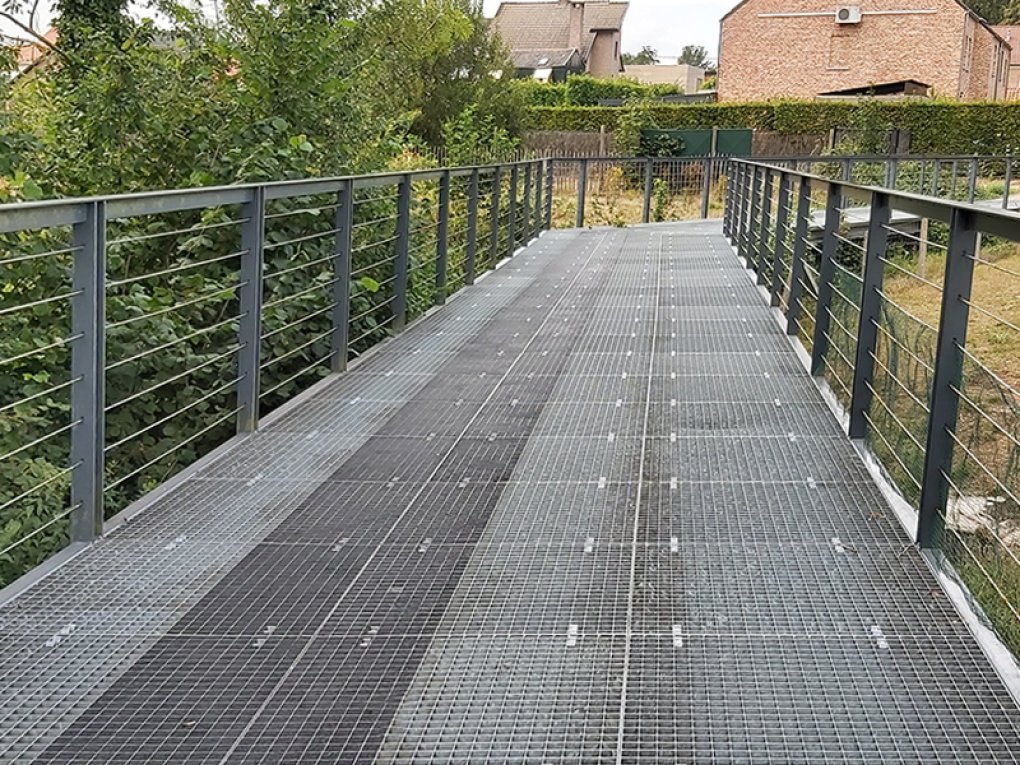

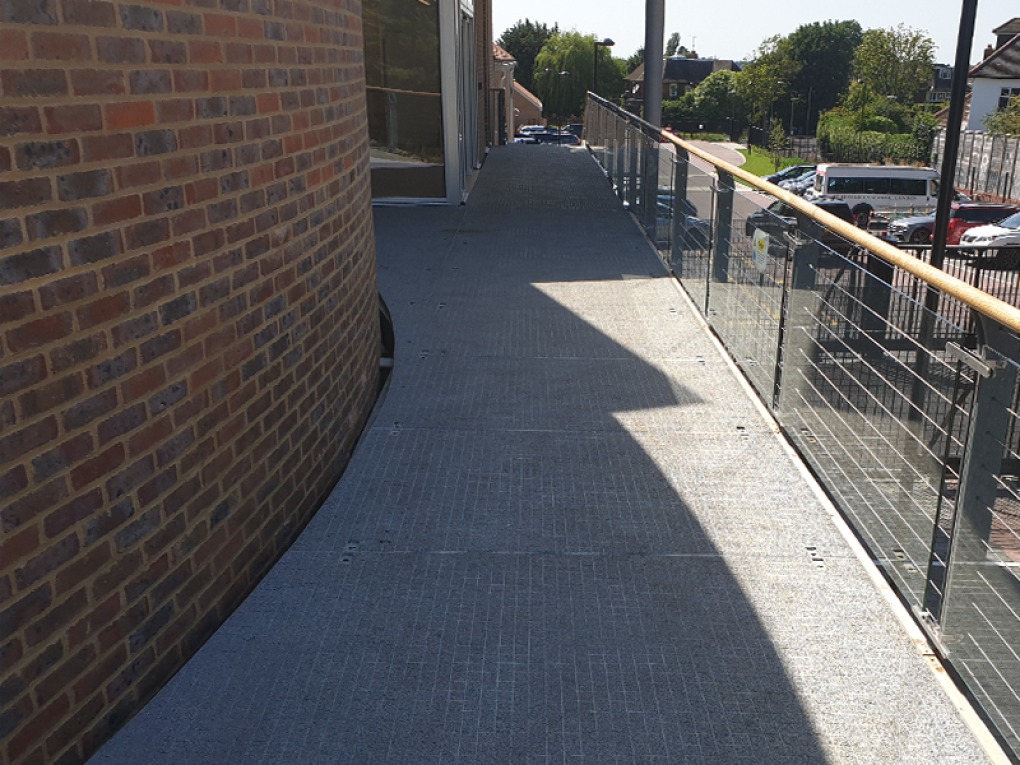

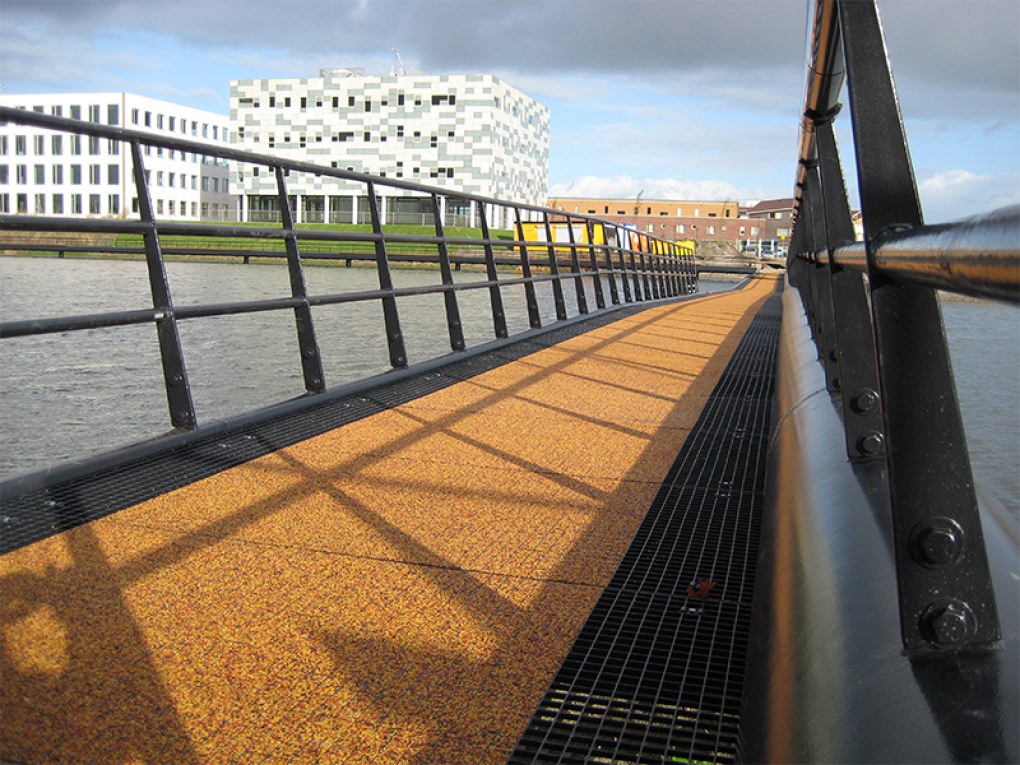

The result is a distinctive closed-look surface suitable for stair treads, terraces, bridge decks, mezzanines or raised floors. The closed surface provides a sound-dampening and comfortable feel both above water and at height.
A fire-retardant variant EPDM FR is also available — particularly suitable for multi-storey residential and public buildings.
Endless possibilities for shape, appearance and colour. Very wheelchair-friendly thanks to the anti-slip effect of the granulate. Water and noise behaviour make it a comfortable solution for both indoor and outdoor use.
- Hot-dip galvanized steel (ISO 1461, 2 or 3 mm) or stainless steel
- Spans up to 2 metres
- Anti-slip thanks to granulate
- Sound-dampening and water-permeable (7 l/sec/m²)
- Coloured EPDM infills (available in various shades)
- Infill is easily replaceable
- Hot dip galvanised steel (ISO 1461, 2 or 3 mm) or Stainless steel (2 or 3 mm)
- Tolerance: +0/-4 mm for flatness and dimensions
- Tolerance: +8/-0 mm for cut-outs
- High load-bearing capacity
- Long span — up to 2 metres possible
- Durable, reusable and easy to maintain
- Drain-controlled version available
- Anti-slip thanks to skid resistance of granulate
- Bearing and crossbars without anti-slip
- EPDM filling available in various colours
- Blocks mesh width: 33×33 or 44×44 mm
- Anti-slip class: comparable to R13
- Partial filling of gratings possible
- Welded strip 25×2 or 35×2 mm under EPDM granulate
- Minimum filling height 10 mm
- Hardness of granulate 70 shore A
- Water permeability of 7 l/sec/m²
- Noise-reducing, recyclable
- Temperature resistant -25 to +80 °C
- Replacement of the filling possible
- EPDM filling available in various colours
- Stripes width: 33 or 44 mm
- Anti-slip class: comparable to R13
- Partial filling possible
- Welded strip 25×2 or 35×2 mm
- Minimum filling height 8 mm
- Hardness of granulate 70 shore A
- Water permeability of 7 l/sec/m²
- Noise-reducing, recyclable
- Temperature resistant -25 to +80 °C
- Replacement of the filling possible
- EPDM FR filling available in various colours
- Blocks 33×33 or 44×44 mm; stripes 33 or 44 mm
- Anti-slip class: comparable to R13
- Min filling height 8 mm (stripes) or 10 mm (blocks)
- Hardness of granulate 70 shore A
- Excellent fire-retardant properties
- Meets EN 13501-1 classification
- Floor: Bfl-s1
- Ceiling and wall: Bs1-d0
- Drainage holes (mesh 6–8 mm)
- Suitable for multi-storey residential buildings
Our specialist will help you choose the right product, material and dimensions.
