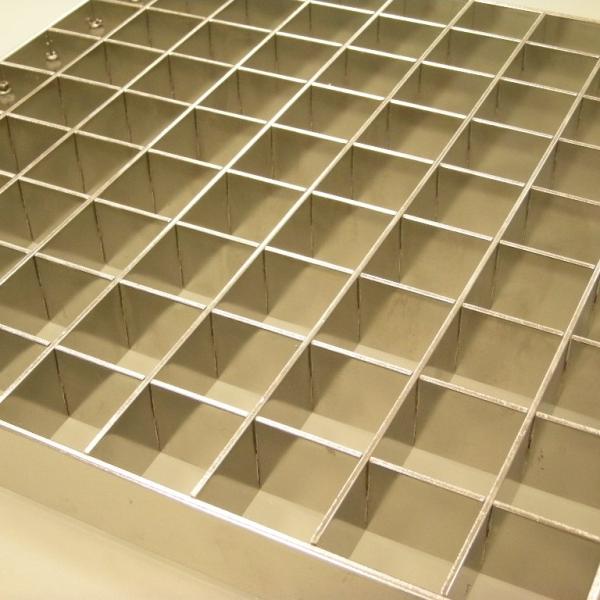

Full Gratings

Full grating is a press-fit grating with bearing bars and cross bars of equal height cut out to the middle. A bearing bar is the one which leans against a support with both ends and has no slots on the lower edge.

Such kind of grating benefits from unique design, but has much lower load bearing capacity than press-locked or pressure-welded one, having bearing bars cut out to the middle.

Solid grating is a great solution for façade decorations, capable of protecting against sunlight: similar bars in both directions really can better restrict sunbeams falling at various angles. Besides, it can be used as ventilation gratings or banister filling, in other words, in any vertical application.

Full grating can be made from steel, stainless steel or aluminium.

The maximum dimensions of a finished module are 2000 mm by the bearing bar and 1200 mm by the cross bar.
