JettyDeck®
JettyDeck® is a combined panel based on a metal frame that combines the strength of steel with the appearance of wood or EPDM infill.

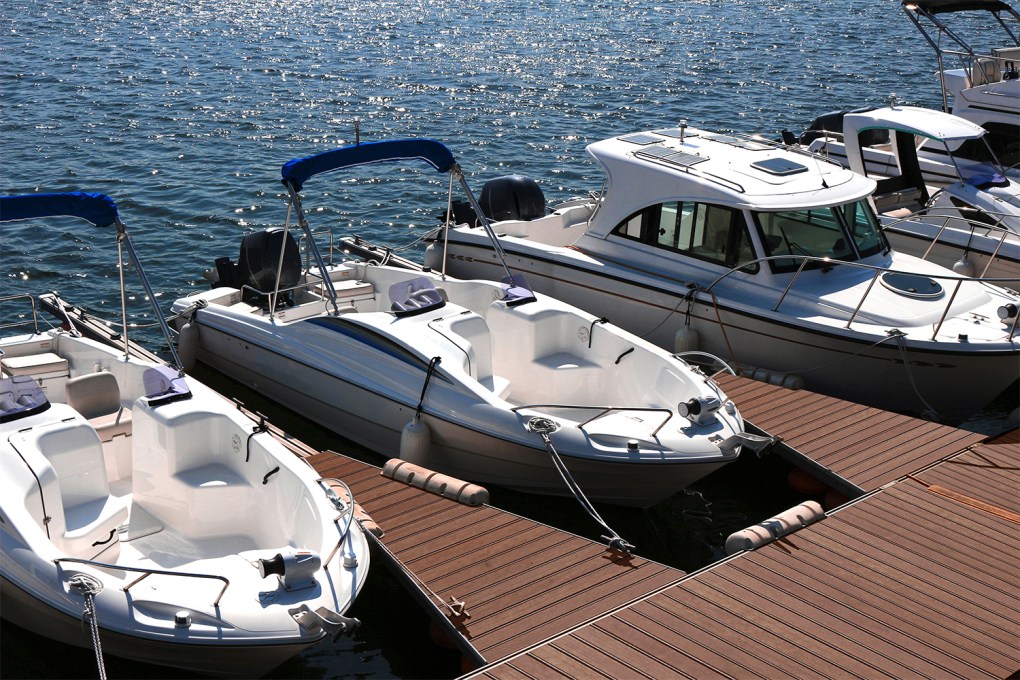

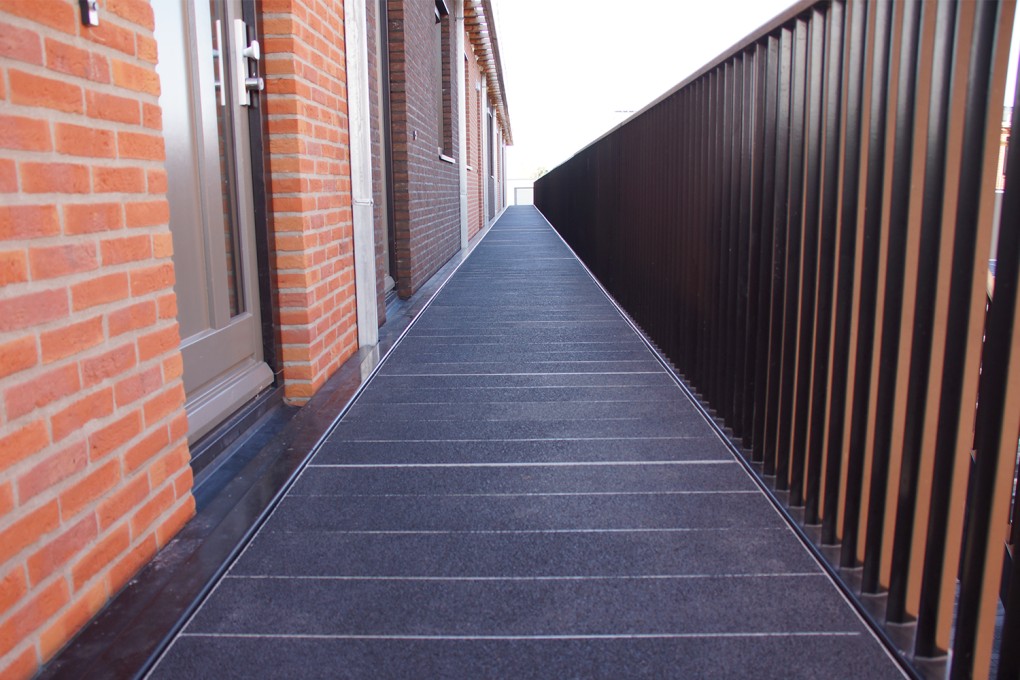

Thanks to its weather-resistant properties, JettyDeck® is suitable for sustainable and aesthetic applications — jetties, balcony floors, platforms and bridge decking.
A perfect combination of metal and wood or EPDM infill: most sub- and superstructures are made from similar materials, JettyDeck® brings these best properties together in one product.
A fire-retardant variant EPDM FR is also available — particularly suitable for multi-storey residential and public buildings.
Key advantages: endless shape and infill options, high load capacity, long spans (up to 3 m), maintenance-friendly and easy infill replacement.
- Hot-dip galvanized steel (ISO 1461, 3 mm) or stainless steel (2 mm)
- Maximum panel width 250 mm
- Spans up to 3 metres
- Easy assembly, dismantling and reuse
- Durable, recyclable and maintenance-friendly
- Fire-retardant EPDM FR variant available
- Hot-dip galvanised steel (ISO 1461, 3 mm) or stainless steel (2 mm)
- Tolerance: +0/-4 mm for flatness and dimensions
- Tolerance: +8/-0 mm for cut-outs
- Structural welds every 500 mm or +/- 25 mm
- Maximum panel width 250 mm
- High load-bearing capacity
- Long span — up to 3 metres possible
- Easy to assemble, disassemble and re-use
- Durable, reusable and easy to maintain
- Wood fill types: Bamboo, Bilinga or Cumaru hardwood
- Anti-slip class: R10
- Jagged ribs possible with wooden inlay
- Very long lifespan
- Tight appearance
- Recyclable
- Easy to change/replace filling
- EPDM filling available in various colours
- Anti-slip comparable to class R13
- Minimum filling height required: 10 mm
- Water permeability of 7 l/sec/m²
- Noise-reducing
- Very long service life and recyclable
- Partial filling or combinations of materials possible
- Temperature resistant from -25 to +80 °C
- Replacement of the filling possible
- EPDM FR filling available in various colours
- Anti-slip comparable to class R13
- Excellent fire-retardant properties
- Meets EN 13501-1 fire safety classification
- Floor applications: Bfl-s1
- Ceiling and wall applications: Bs1-d0
- Drainage holes (mesh size 6–8 mm)
- Suitable for multi-storey residential buildings
- Replacement of the filling possible
Our specialist will help you choose the right product, material and dimensions.
