TrafoDeck

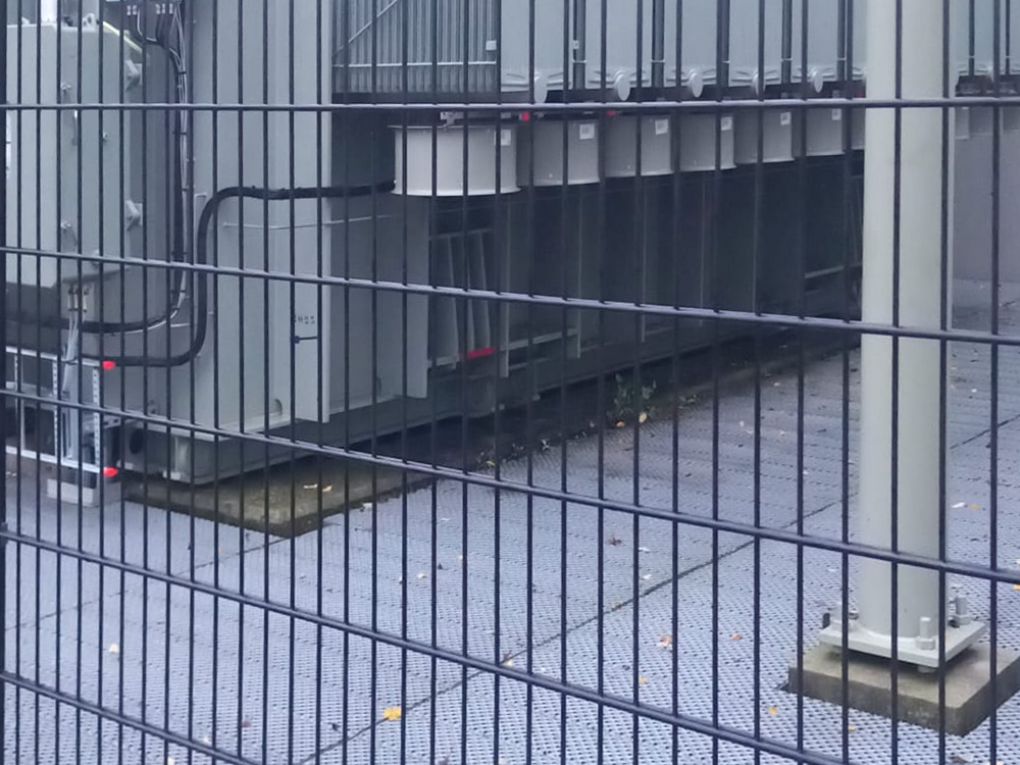

TrafoDeck is a flame-extinguishing metal panel developed specifically to protect oil-cooled transformer stations from explosions.
The panel's open area is below 5%, which helps automatically extinguish burning transformer oil in the event of an explosion.
Materials
Hot-dip galvanized steel (ISO 1461, 3 mm)Stainless steel (2 mm)
Features
- Flame-extinguishing effect with controlled open area (< 5%)
- Strong and durable: high-quality metal
- Low maintenance, weather-resistant
- Length up to ~2000 mm, panel width 250 mm
- Maximum platform width 1000 mm
- Slip class R11
Proven safety through effective testing
In cooperation with Efectis Nederland BV, TrafoDeck has been thoroughly tested under real conditions. During a simulated explosion, the panels quickly and effectively extinguished the burning transformer oil. The maximum temperature reached was 144 °C, and the test confirmed the system's flame-extinguishing function.
Durable in all weather conditions, low-maintenance and reliable protection against explosions.
Technical specifications
Material types
- Galvanised steel
- Stainless steel
Technical specifications
- Length: up to approx. 2000 mm
- Standard panel width: 250 mm
- Maximum platform width: 1000 mm
- Height: depending on requirements
Material specifications
- Galvanised steel (3 mm) or stainless steel (2 mm)
- Anti-slip rating: R11 on walking surface
- Various perforation patterns available
